Ortur R2 – Smart Laser Engraver 10W

Precision Laser Engraving Meets Intelligent Automation

At the core of the Ortur R2 is a 10 W diode laser module operating at a wavelength of 445 ± 5 nm with a fixed focal length of 46 mm measured from the heat sink to the workpiece surface. Fixed focus eliminates focal drift across a session, which is critical when engraving fine text or photographic gradients where depth consistency directly determines tonal fidelity. A 0.01 mm precision point — visible and sharp even under magnification — delivers hairline detail that distinguishes production-grade output from consumer-level results.

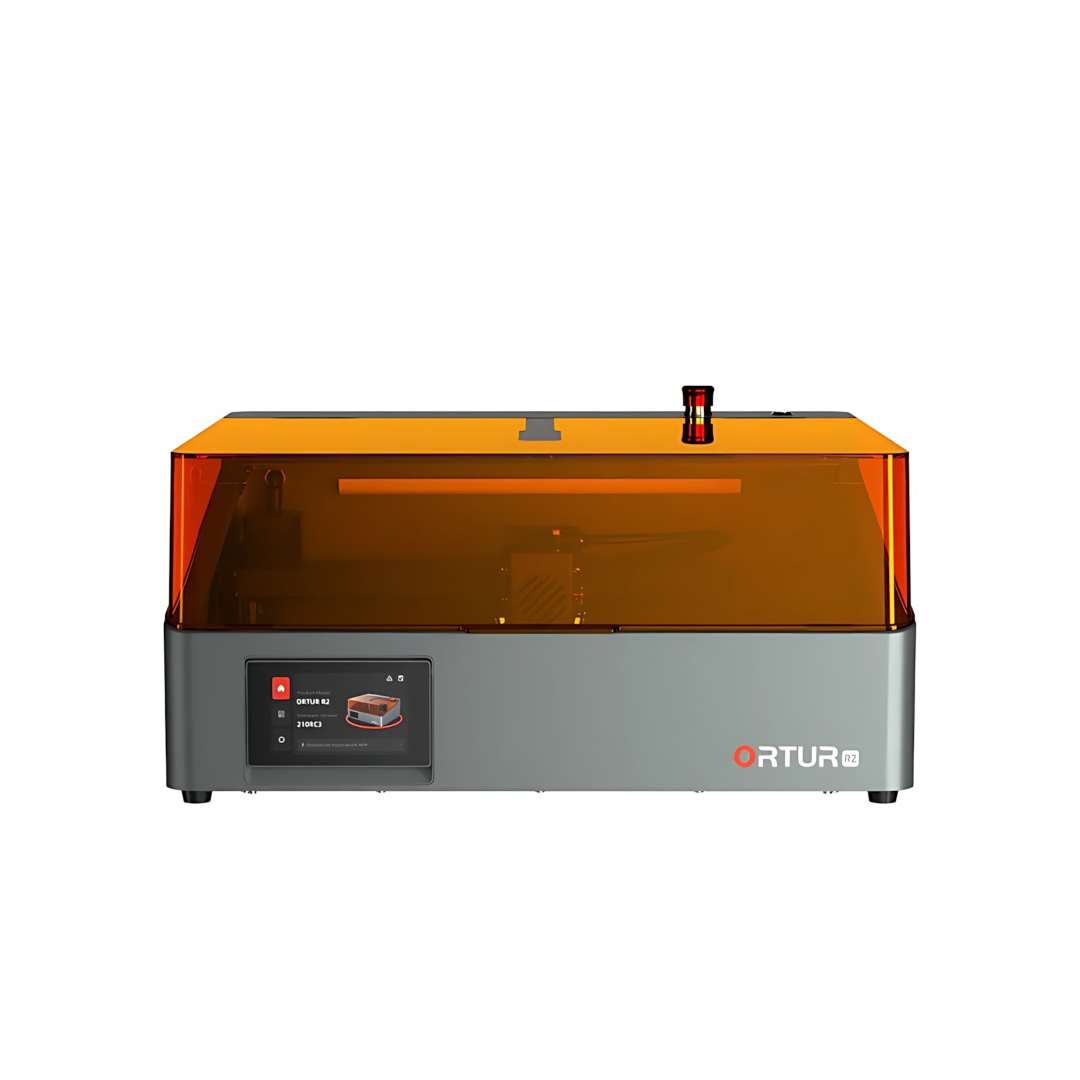

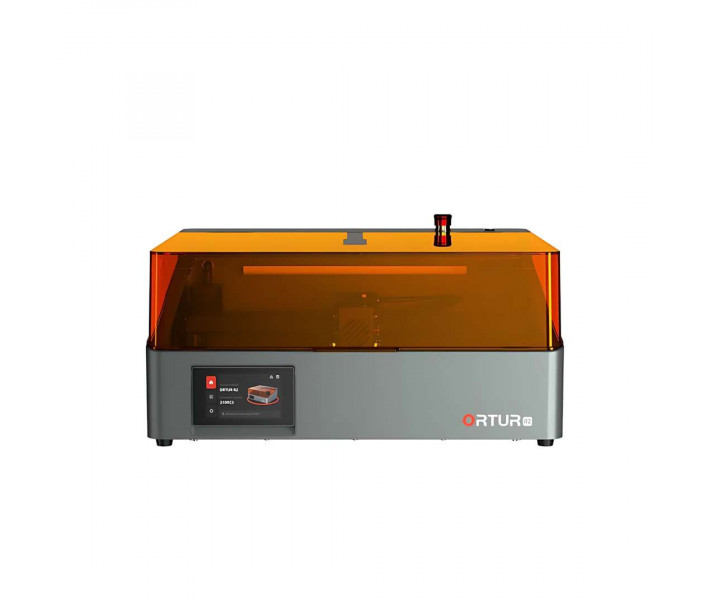

The following image shows the closed-lid design of the engraver, illustrating its compact footprint and protective build.

Speed is equally notable. An engraving rate of 20,000 mm/min — sustained, not peak — means multi-piece batch runs complete 50% faster than conventional 10 W machines without sacrificing edge crispness. The NEMA17 stepper motors and 99% aluminium-alloy construction combine to eliminate the resonance and flex that degrade XY positional accuracy at high traverse speeds.

HD Camera and Smart Auto-Alignment

The built-in high-definition camera automatically detects material placement and aligns the engraving path to the substrate — no manual jog, no target markers. This matters most in batch workflows: the R2 auto-saves the last 8 completed tasks, enabling one-tap repeat engraving across identical blanks without re-importing files. Cross-device task recall via the app further removes friction from production runs.

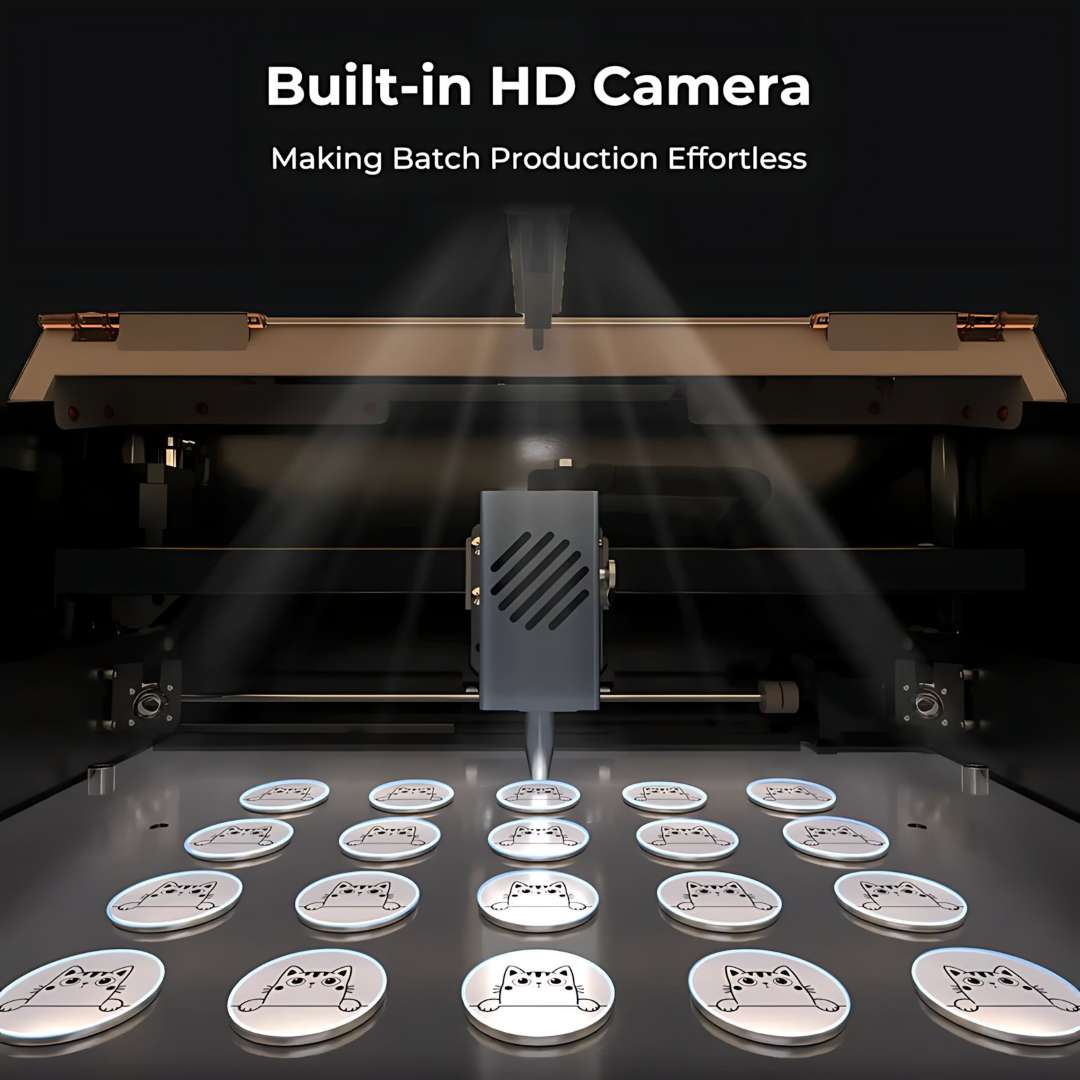

The image below demonstrates how the Ortur R2 Smart Laser Engraver 10 W leverages its HD camera for batch production and material auto-alignment.

Key Safety and Performance Features

Six independent safety systems operate in parallel during every job. An active gyroscopic sensor cuts power if the machine is tipped or moved unexpectedly. Flame recognition uses five thermal detection points — if three or more register simultaneous temperature rise outside the laser path, power-off protection triggers instantly. Exposure duration detection enforces time limits that prevent substrate ignition during deep cutting passes. These hardware-level protections work regardless of software state.

The overview below highlights the R2's multi-target recognition, Class 1 safety certification, and curved-surface capability in a single reference graphic.

Mobile App: Sketch, Photo Import, and Community Presets

The companion app serves as both a design studio and a machine controller. Users can sketch directly on-screen, import photographs for single-tap engraving, or combine hand-drawn elements with photos in a single job. Over 19 artistic fonts support multilingual text personalisation. Smart presets auto-configure laser power and speed once the user selects a material — eliminating trial-and-error calibration entirely. The in-app creative community allows finished project sharing and preset discovery from a global user base.

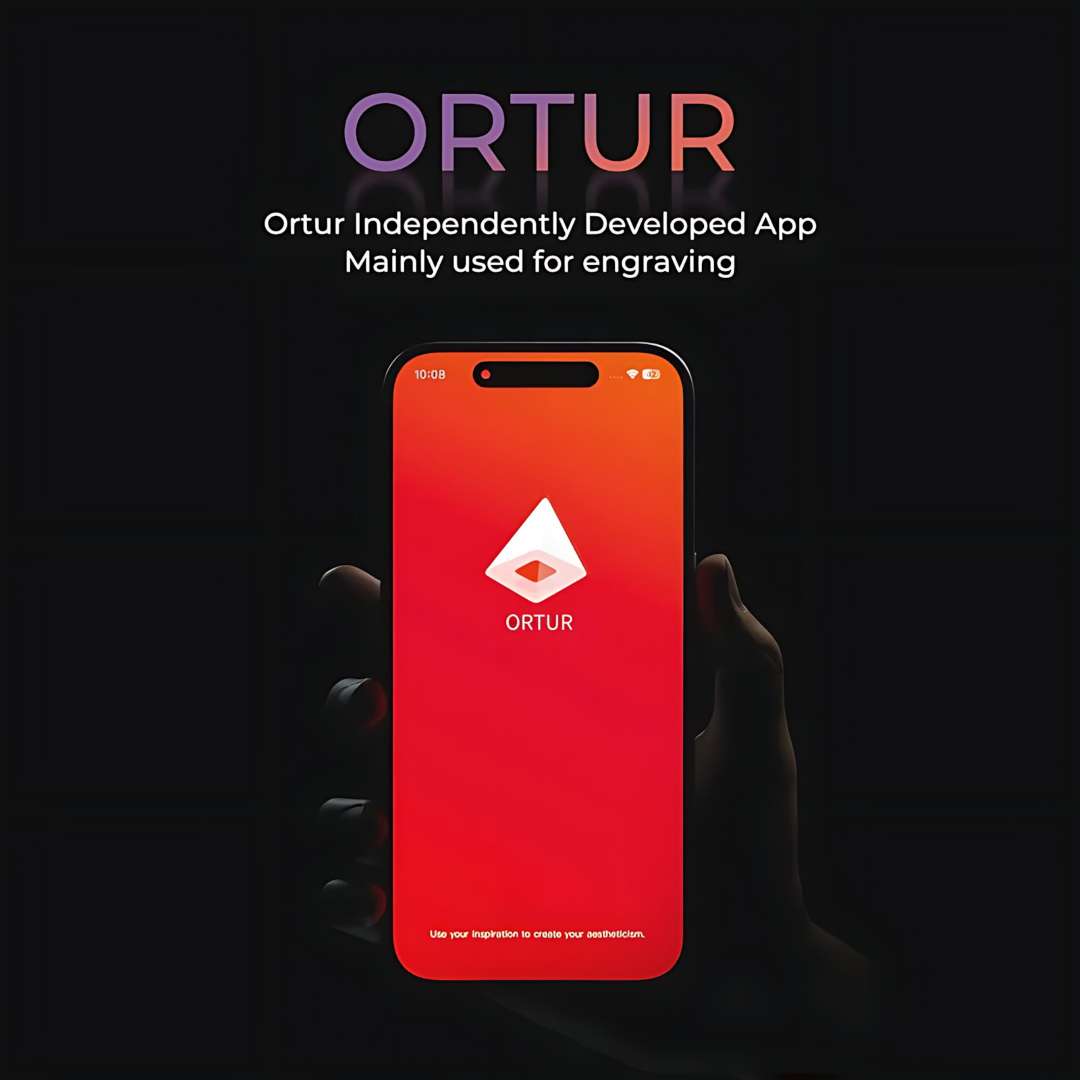

The image below shows the Ortur mobile application interface used for design creation and wireless machine control.

Flip-up Screen and Offline Operation

The multifunctional flip-up touchscreen adjusts like a laptop lid for ergonomic viewing at any working height. Offline operation via SD card or USB flash drive means the engraver runs independently of any connected computer or mobile device, an important capability for workshop environments where devices are shared or connectivity is intermittent. The self-diagnosis routine automatically scans system status before each session, flagging hardware issues before they become mid-job failures.

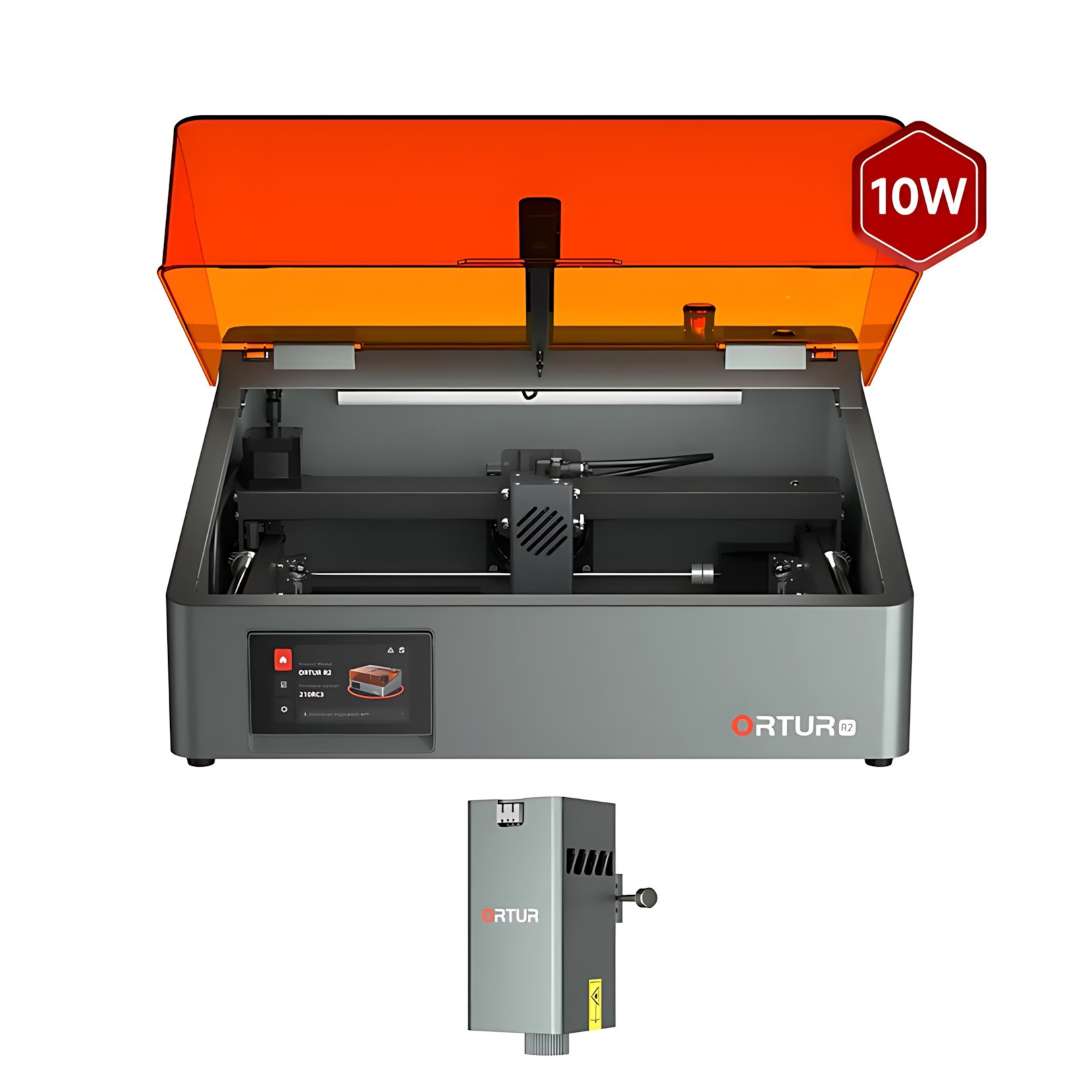

Below is a detailed view of the R2 with its lid open, revealing the 10 W laser module and internal optical assembly.

Tech Tip: When engraving photographic images on wood, set your baud rate to the default 115,200 and use LightBurn's "Jarvis" dithering mode with a speed of 4,000–6,000 mm/min. At the R2's fixed 46 mm focal length, this range preserves highlight-to-shadow tonal range while staying well within the motor's resonance-free zone — avoiding the micro-banding that appears at speeds above 10,000 mm/min on photographic content.

What's in the box

The image below shows the full packing list included with the Ortur R2 Smart Laser Engraver 10 W, confirming every accessory and calibration tool delivered at purchase.

Standard Accessories

• R2 Laser Engraver × 1
• Power Cord × 1
• Power Adapter × 1
• Camera Calibration Board × 1
• Machine Key × 1
• Triangular Blade × 4
• YRR Adaptor Cable × 1
• USB Data Cable × 2
• Opening for Ventilation × 1
• Flat Head Tapping Screws × 4
• 3 mm Allen Wrench × 1
• Two-in-one Screwdriver × 1
• Wrench × 1
• Test Acrylic × 1
• Test Aluminium Sheet × 1
• Test Wood Chips × 4
• Brush × 1
• Zip Ties × 10
• Laser Goggles × 1
• Card Reader + TF Card × 1

LU3-10A 10 W Laser Module Accessories

• LU3-10A 10 W Laser Module × 1
• Hand Screw × 1
• Lens Replacement Tool × 1
• Replacement Lens × 1
