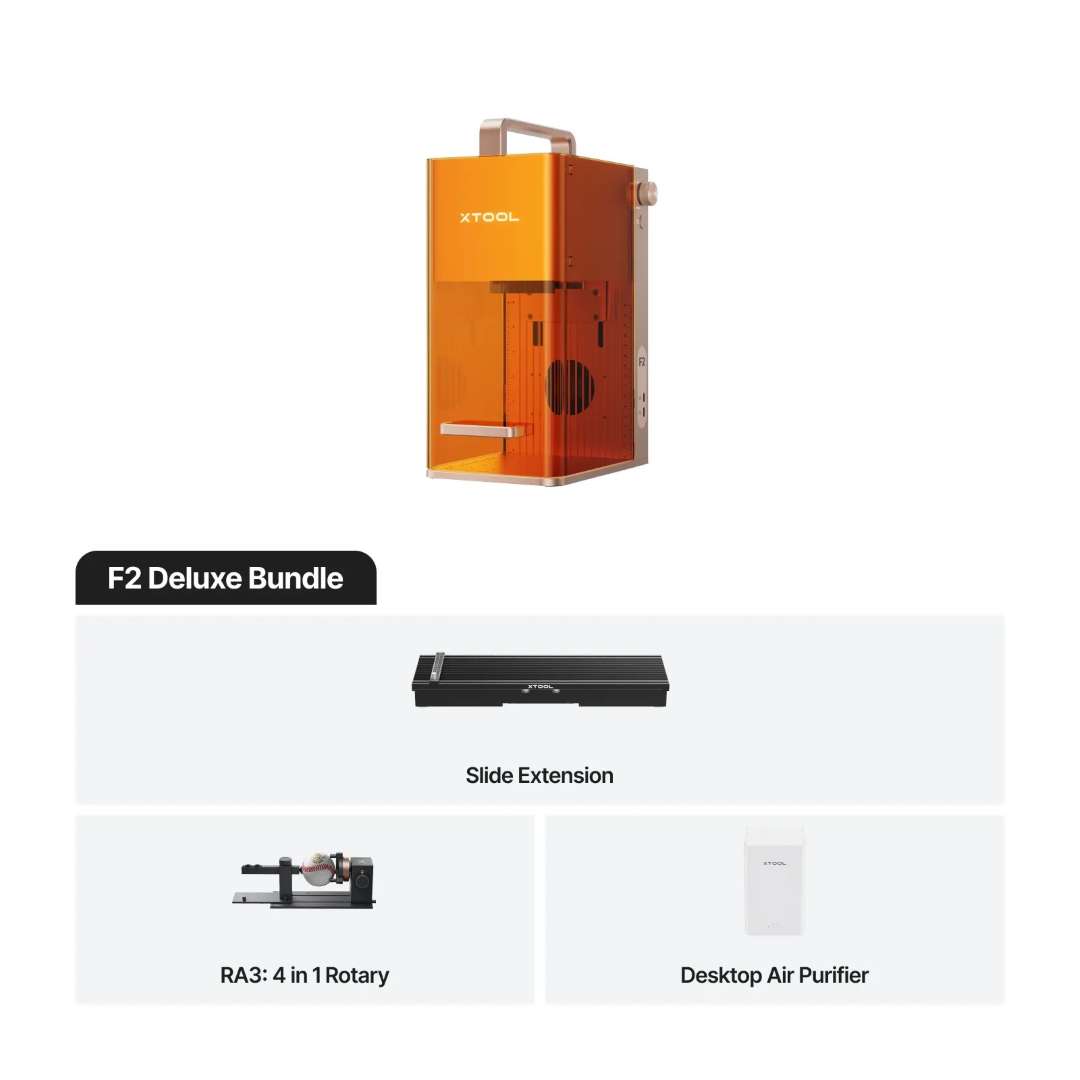

xTool F2 Deluxe Bundle – All-in-One Laser Engraving Solution

The xTool F2 Deluxe Bundle is a compact dual-laser engraver for mobile personalisation and batch production. A 15 W diode laser and a 5 W IR laser share a single galvanometer optic, spanning materials from wood and leather to gold, silver, and stainless steel. The Deluxe bundle ships with the RA3 Rotary Attachment, Slide Extension, and Desktop Air Purifier — a complete production ecosystem in one package.

• Dual-source architecture: both lasers share a single galvanometer optic — switching between them is done in software with one click, with no mechanical changes to the unit.
• 50 MP camera, positioning accuracy to 0.1 mm: the design overlays on a live image of the material, eliminating manual alignment and reducing waste.
• Enclosed body, Class 4 laser safety: the device is ready to use straight from the box and safe in public spaces thanks to its light-blocking protective shield.
• Motion accuracy of 0.00199 mm: complex typography and photo engraving are reproduced consistently — from the first to the hundredth item in a batch.

xTool F2 — Dual-Source Architecture

The device's competitive advantage lies in its dual-source architecture: the diode laser and the IR laser share a single precision galvanometer optic. Switching between them is done in software with one click — with no mechanical changes to the unit. This eliminates the compromise faced by owners of single-source portable engravers: either organics or metals, never both.

The xTool F2 Deluxe Bundle meets the requirements of mobile personalisation businesses: the enclosed body ensures safety in public spaces, and the pre-assembled construction eliminates lengthy on-site setup. A full overview of the laser configuration, camera features, and bundle accessories is provided in the infographic below.

Two Laser Sources

The 5 W IR laser module at 1064 nm has a spot size of 0.03 mm × 0.03 mm. It produces deep dark marking on gold, silver, platinum, and stainless steel, as well as colour engraving on metal surfaces and three-dimensional embossing on dense materials. Samples produced with the IR module are shown below.

The 15 W diode laser with a spot size of 0.08 mm × 0.06 mm performs deep engraving and clean cutting. It covers wood, leather, MDF, felt, dark acrylics, and materials with metal coatings. The range of materials compatible with the diode module is illustrated in the diagram below.

Speed and Precision

The system's maximum operating speed is 6000 mm/s at a motion accuracy of 0.00199 mm. This combination guarantees sharp fine detail and crisp typography even at peak throughput. The higher power of the IR module reduces the number of passes required for three-dimensional embossing on stone and hardwood.

Smart Camera and Positioning

The built-in 50 MP smart camera overlays the design on a live image of the material at 1:1 scale. Camera-based positioning accuracy is up to 0.1 mm, which virtually eliminates the need for manual alignment. With the Slide Extension connected, the software automatically stitches two fields of view into a single panoramic image — the full layout remains visible without manual repositioning.

Software and Connectivity

The system is operated via xTool Creative Space on Windows and macOS. It supports connection via Wi-Fi, USB, or IP address. Supported file formats include SVG, DXF, JPG, JPEG, PNG, BMP, and others. Compatibility with the AImake service allows designs to be generated automatically directly within the software interface.

Repeatability and Detail

The galvanometer motion system maintains stable geometry and consistent line weight across an unlimited number of repeat cycles. The hundredth item produced matches the first — a requirement that is critical for wholesale and corporate orders where the quality of every piece is a contractual obligation.

Safety

The enclosed body with a light-blocking protective shield meets Class 4 laser safety requirements. A built-in extraction fan removes combustion by-products from the operator's environment during operation. A physical emergency stop button provides instant power cut-off in unexpected situations. This construction allows safe use of the equipment in public spaces: at exhibitions, in boutiques, and in shopping centres.

Slide Extension

The Slide Extension included in the Deluxe bundle expands the standard working area from 115 × 115 mm to 400 × 115 mm. The extension moves at up to 160 mm/s and connects via a Mini-USB cable without additional power supplies. xTool Creative Space automatically detects the extension and displays the updated layout. Five clamps secure thin and deformed workpieces — paper, cork, thin acrylic — during movement along the Y axis.

RA3 Rotary Attachment

The RA3 connects to the xTool F2 and enables engraving on cylinders, spheres, and rings — from metal mugs and thermal tumblers to glass jewellery. The MagSwap system replaces chuck, roller, sphere, and ring modules in seconds without additional tools or recalibration. T-type jaws hold workpieces up to 130 mm in diameter. Roller batch mode processes up to three items per run at speeds of up to 1200 mm/s.

Desktop Air Purifier

The Desktop Air Purifier synchronises with the system automatically: it activates at the start of a job and continues running for 10 seconds after engraving is complete. Three-stage filtration includes a 5 µm pre-filter, a dual H13 HEPA filter, and an activated carbon layer. The H13 HEPA captures 99.97 % of particles 0.3 µm and larger; the carbon layer neutralises VOCs and organic odours. Three fan speeds allow the balance between extraction power and noise level to be adjusted according to the material being processed.

Applications

The xTool F2 Deluxe Bundle is aimed at mobile personalisation businesses where material variety and high throughput determine profitability. The scenarios below illustrate how the dual-source architecture and bundle accessories address specific production tasks.

• Fairs and pop-up markets: processing personalised orders at speeds of up to 6000 mm/s converts visitor footfall into sales without queues or delays.
• Jewellery counters: marking gold, silver, and platinum is carried out with the 5 W IR laser directly in the client's presence — without changing equipment or recalibrating.
• Electronics personalisation: the diode laser applies custom markings to laptops, cases, and accessories with precision that minimises the risk of surface damage.
• Wedding and event goods: the Slide Extension enables batch processing of wooden decorations, acrylic cards, and table numbers in a single continuous cycle.
• Corporate gifts and bulk orders: the RA3 roller batch mode processes up to three branded tumblers or thermal mugs per run simultaneously.
• Awards and trophies: the complete workflow — from metal plates to wooden plaques — is handled on a single workstation thanks to the two laser sources.

Compatible Materials and Accessories

• Cutting — 15 W diode laser: paper, wood, leather, MDF, felt, some dark opaque acrylics
• Engraving — 15 W diode laser: paper, wood, leather, metal coatings, some dark opaque acrylics, etc.
• Engraving — 5 W IR laser: plastic, gold, silver, platinum, stainless steel, etc.
• RA3 Rotary Attachment: included in the Deluxe bundle; for cylindrical, spherical, and ring-shaped workpieces
• Slide Extension: included in the Deluxe bundle; expands the working area to 400 × 115 mm
• Desktop Air Purifier: included in the Deluxe bundle; filters PM2.5 and VOCs in enclosed spaces

What's in the Box

• xTool F2: dual-laser engraver (15 W diode + 5 W IR) — main unit
• xTool RA3 Rotary Attachment: MagSwap kit with chuck, jaws, and roller
• xTool F1/F2 Slide Extension: expands working area to 115 × 400 mm, 5 clamps
• xTool Desktop Air Purifier: H13 HEPA filter and activated carbon included
• Cables and adapters: certified power supply unit, power cable, USB cable
• Workspace components: metal base, cutting grid panel, L-shaped positioning part
• Maintenance and safety: replacement field protection glass, safety key, screwdriver, lint-free cloth
• Starter pack: material samples, Quick Start Guide, Safety Instructions
